Products Summary

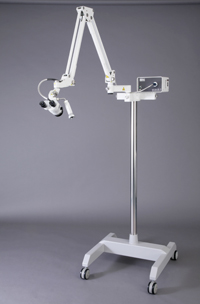

MICROSCOPE SN-100Series

The SN-100 series are compact and lightweight, and features outstanding ease of use.
It is widely emplyed by ENT doctors as a tool for outpatient examinations.

Model No.
Unit fixing type w/o TV attachment lens　  #2 03 07100
Unit fixing type with TV attachment lens 　#2 03 07500 ※1
Stand type w/o TV attachment lens　        #2 03 07300
Stand type with TV attachment lens 　      #2 03 07700

Specifications

Specifications/Microscope

Magnifications	2x / 4x / 6x (At f-230mm) Three step conversion
Objective lens	Convertible (f-200mm ～ 250mm)
Illumination	Co-axial fiber light

Specifications/Light source

Dimension	W150 x D208 x H165 (mm)
Weight	5.2kg
Lamp	Halogen lamp  21V – 150W

Risk category	General medical equipment
Specified maintenance management medical equipment	Applied
Installation maintenance medical equipment	Does not apply
Medical equipment permit number	13B1X00138030327

●The details of these specifications are subject to change without notice for further product improvement.
